LMW Offers Higher Levels Of Automation, Digitization, Innovation To Spinners

Spinning

LMW Offers Higher Levels Of Automation, Digitization, Innovation To Spinners

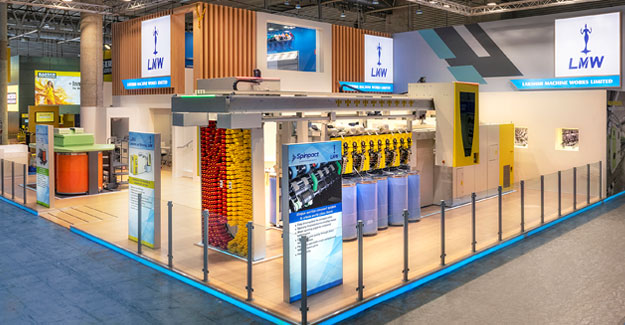

During ITMA 2019, LMW unveiled a three-pronged approach of automation, digitization and innovation for addressing the emerging challenges of the spinning industry. LMW technology and products were well appreciated by the numerous visitors at the show. The company had displayed innovative products for ring spinning segment , open end segment and airjet spinning segment. RAP system (Ringframe Autopiecing system ) by regular Underpiecing method This revolutionary automation for the spinning industry will lead to major labour cost savings. With a benchmarking piecing time of less then 45 seconds, this product was the talk of the show. LAKSHMI JET SPINNING LJS9 To shorten the yarn manufacturing process, LMW has launched an economical jet spinning yarn manufacturing solution which gives a reduction in manpower to the tune of 50 %.The key features include:

Delivery speed upto 550 mpm
Max upto 200 drums
Individual drive for each spinning unit
Dual side spinning for better space utilisation
Robotic piecing system
Dual filter system - independent on each side

LAKSHMI AUTO WINDER LAW 60

Delivery speed upto 2200 mpm
Max drums upto 60 for linkconer
Individual drive for all machine elements
Dual preparation station for courser counts
Auto doffer for package handling
RFID technology for peg identification – individual spindle monitoring
Same pegs moves from RF to Link winder
Position of HMI near to preparation station – ease in trouble shooting
Drum with 2 / 2.5 & 3 turns are available
Compatible for Cone angles – 3deg37mins / 4deg20 mins / 5 deg 57 mins

Fix Fil

Can changer mechanism with minimal movement of can ( approx. half of can dia)
Leads to efficiency improvement as can change happens at the running speed without reduction
Centre to centre distance of card is minimum ( 3.3m for 1000mm can dia & 3.8m for 1200mm can dia)
Dual can plate with individual drive arrangement
In built can pusher arrangement
Doffed can monitoring sensor inbuilt.

Magnus Can

Can dia upto 1200mm is possible with height of 1200mm & 1300mm with the can content increase upto 44% & 56% respectively
Advantages are related to minimal can movements, reduction in number of doff and thereby increase in efficiency in card, drawframe, etc.

Card with Drafting System – CDS
