In the automatic yarn winding process, splicing is the most important part and Savio is particular on that. Savio has a wide range of splicing solutions for different applications and requirements. Savio uses Mesdan, a Savio Group company, make of splicers from the beginning and they are known in the industry for the best splice results with shortest and strongest splices.

There are air, moist air, water, heat splicers from Mesdan and TWINSPLICER from Savio, which are completely mechanical.

Savio has now further introduced the improved versions of the new air and moist air splicers (model 690 and 6901). These splicers with duo air control give better performance. Earlier versions had a common air supply for tail preparation and splicing. This new system provides more possibilities for the mill technicians to adjust settings for better control of air resulting in better performance.

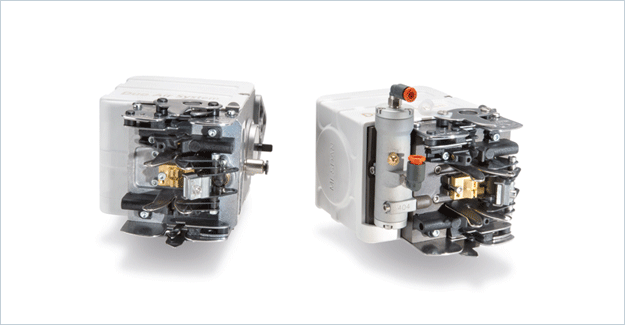

Air splicer – Model 895 (Eco PulsarS) / 845 (Polar Evo)

Air splicer settings are centralised through and Machine computer. These models are known for a fast and simple change over giving consistent uniformity of splices at each spindle. Main application range includes all kind of spun yarn like 100% cotton, Viscose cellulosic, Wool, Acrylic, Silk, and blends of all these materials, Fancy yarns, Core yarns. and blends, 100% wool and blends, Silk, cotton compact yarn, fancy yarn, core yarns, synthetic and artificial yarns.

Moist air splicer – Model 8951(Eco PulsarS) / 8451 ( Polar Evo)

Moist air splicer is an innovative air splicer that also uses a very small quantity of water spray. It has a water valve with a dosage setting to moisturise the splice in a controlled manner and self-cleaning of chamber area as and when required through computer setting. The appearance and strength of Moist air splicer is more better than Air splicer.

Main application range includes typical yarn like Compact, Elitwist, Cotton with elastomeric core and Some extend to double yarn of cotton, P/C, P/V, Lyocell, TENCEL.

Water splicer – Model W20

The splicing is made under vacuum while the water is injected (duo stage). All the splicer parts are located in a water proof housing to avoid the spray of water outside the splicer. Main application range includes Flax, flat and fancy yarns, mercerised/singed yarns, elastomeric yarns, two ply cotton yarns, open end yarns.

Heat splicer – ModelH20/H21

The consolidated experienced on the splicer air technology in combination with the use of heat, guarantees a final splice with excellent appearance, high and consistent strength, even with difficult yarn structures, different blended materials and high twisted yarns. Main application range included Carded wool coarse counts, mule spun yarn, high twist yarns, and 100% wools and blends.

TWINSPLICER

The TWIN splicer is ranked at the top amongst all splicers for its superior quality. The splice strength and the appearance same as the parent yarn. The splice on compact yarns, besides the strength, needs to be of an extremely good appearance in order not to create a visible defect on the finest fabrics. The twin splicer for core yarns preserves the elastomeric filament entirely inside the splice.

Splicing principle is 100% mechanical with total control of the yarn during the splicing cycle. Compressed air is not at all required and consumed.
